Name: IEPP High Efficiency Grey Water Recycling System Micro Bubble Units Super Atomization Dissolved air Flotation Filtration System
Brand: Iepp Environmental (shandong) Group Co., Ltd.
Availability: InStock

Home Products top Product

IEPP High Efficiency Grey Water Recycling System Micro Bubble Units Super Atomization Dissolved air Flotation Filtration System

Product Details:

Place of Origin:	Shandong, China
Brand Name:	IEPP

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC	Warranty:	More Than 5 Years
Productivity:	75000L/Hour	Weight (kg):	6170 Kg
Product Name:	Water Filteration System	Brand:	IEPP
Application:	Food And Beverage Slaughtering House Textile Mechanical Processing	Material:	Stainless Steel, Standard Sea Package
Capacity:	75 T/h	Warranty:	12 Months
Technology:	Super Atomization Dissolved Air Flotation	Control:	Plc/ Button
After-sales Service Provided:	Video Technical Support Online Support	Packing:	Seaworthy Package
Condition:	New	Showroom Location:	Egypt, Canada, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, South Korea, Chile, UAE, Japan, Malaysia, Australia, None
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Retail, Other	Weight:	6170kg
Size:	832550303000 Cm	Power:	15.37 KW

IEPP High efficiency grey water recycling system micro bubble units super atomization dissolved air flotation filtration system

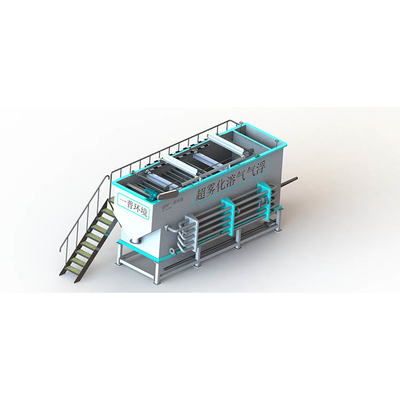

IEPP® Super Atomization Dissolved Air Flotation (SADAF) is a product developed by IEPP that is widely used in food factories, slaughterhouses, poultry farms, pig farms, cattle farms, textile printing and dyeing, electroplating, pharmaceuticals, oil and gas , mining, pulp and paper, wastewater treatment plants in many major industries and municipal wastewater treatment plants.

The SADAF adopts a lot of IEPP's top patented technologies and is very suitable for the clarification of drinking water treatment, especially for difficult flocculation, low temperature, colored waters and waters prone to algal blooms. IEPP® SADAF is very effective on water containing fats, oils, grease and very fine particles. The equipment can be used alone as a clarifier, and when used in conjunction with coagulants, flocculants and other agents, it
becomes a physical and chemical process.

Flocculators are an essential component on all our SADAF compact systems. Our pipeline flocculators are characterized by the "in-line process principle". In-line flocculator processes, such as coagulation, flocculation, demulsification, precipitation and pH control, can take place under highly controlled and well-defined conditions to obtain a uniform floc with excellent separation characteristics. This technology saves about 15% of chemical costs for our clients than using traditional dosing system of DAF every year.

The IEPP® SADAF uses a unique nanobubbles diffuser system, which is a unique patented technology of IEPP company. This technology ensures the stable performance of IEPPSADAF and realizes the goal that the DAF system can provide 24/7 continuous operation without blockage. The technology provides advanced technical advantages for our customers who have adopted our SADAF system, and also saves a lot of equipment maintenance costs and labor costs for our customers every year.

The IEPP's unique super atomization air-dissolving technology: the liquid collides at high speed in a space that is only one-fifth the size of a traditional DAF air-dissolving tank to form tiny droplets of 10-20 nanometers. This increases the contact area of the air with the liquid, enabling the air to dissolve into the liquid within 0.6 seconds. More efficient dissolved air efficiency ensures that customers who adopt IEPP® SADAF will get ideal sewage treatment effect. IEPP® SADAF can remove more than 90% of TSS, more than 90% of insoluble COD, more than 90% of grease, and more than 90% of TP in the advanced treatment process.

IEPP has made a lot of detailed improvements to the scum scraping system, including the use of safety nuts and all stainless steel materials, which increases the stability and life of the IEPP® SADAF system in outdoor operation. IEPP's scraping system can minimize the water content in the scraped scum with minimal impact on the scum layer. This technical improvement can save a lot of costs for subsequent treatment of scum for customers using IEPP® SADAF every year.

General type super atomization dissolved air flotation

YP-GQF10	10	5	3510x2540x1850	5.5	4.0	0.37	9.87	1.18	5.35
YP-GQF15	15	5	4527x2620x2500	5.5	4.0	0.37	9.87	2.47	8.72
YP-GQF20	20	7	5395x2620x2700	5.5	4.0	0.37	9.87	2.72	11.05
YP-GQF30	30	10	6275x2940x2700	7.5	4.0	0.37	11.87	3.55	16.05
YP-GQF45	45	15	7425x3120x2900	7.5	4.0	0.37	11.87	4.33	23.08
YP-GQF60	60	20	7575x4620x2850	11	4.0	0.37	15.37	5.32	30.32
YP-GQF75	75	25	8325x5030x3000	11	4.0	0.37	15.37	6.17	37.42
YP-GQF90	90	33	9725x5030x3000	11	4.0	0.37	15.37	7.10	44.60
YP-GQF100	100	33	10505x5030x3000	11	4.0	0.37	15.37	7.60	49.27
YP-GQF110	110	33	11875x5030x3000	11	7.5	0.37	18.87	8.18	54.01
YP-GQF125	125	45	11875x5730x3000	15	7.5	0.37	22.87	8.84	60.92
YP-GQF150	150	50	13560x5730x3000	15	7.5	0.37	22.87	10.06	72.56
YP-GQF180	180	60	14475x6330x3000	18.5	7.5	0.37	26.37	11.47	86.47
YP-GQF200	200	70	14475x6730x3000	22	7.5	0.37	29.87	12.08	95.41

Enhanced type super atomization dissolved air flotation

YP-PQF5	5-7	5	3510x2540x1850	5.5	4.0	0.37	9.87	1.18	5.35
YP-PQF10	10-12	5	4527x2620x2500	5.5	4.0	0.37	9.87	2.47	8.72
YP-PQF15	14-15	7	5395x2620x2700	5.5	4.0	0.37	9.87	2.72	11.05
YP-PQF20	20-22	10	6275x2940x2700	7.5	4.0	0.37	11.87	3.55	16.05
YP-PQF30	30-33	15	7425x3120x2900	7.5	4.0	0.37	11.87	4.33	23.08
YP-PQF40	40-43	20	7575x4620x2850	11	4.0	0.37	15.37	5.32	30.32
YP-PQF55	55-57	25	8325x5030x3000	11	4.0	0.37	15.37	6.17	37.42
YP-PQF65	65-68	33	9725x5030x3000	11	4.0	0.37	15.37	7.10	44.60
YP-PQF75	75-77	33	10505x5030x3000	11	4.0	0.37	15.37	7.60	49.27
YP-PQF80	80-83	33	11875x5030x3000	11	7.5	0.37	18.87	8.18	54.01
YP-PQF95	93-95	45	11875x5730x3000	15	7.5	0.37	22.87	8.84	60.92
YP-PQF110	110-130	50	13560x5730x3000	15	7.5	0.37	22.87	10.06	72.56
YP-PQF135	130-135	60	14475x6330x3000	18.5	7.5	0.37	26.37	11.47	86.47
YP-PQF150	145-150	70	14475x6730x3000	22	7.5	0.37	29.87	12.08	95.41

Efficient type super atomization dissolved air flotation

YP-SQF10	10-14	5	3510x2540x1850	5.5	4.0	0.37	9.87	1.18	5.35
YP-SQF15	15-20	5	4527x2620x2500	5.5	4.0	0.37	9.87	2.47	8.72
YP-SQF25	25-27	7	5395x2620x2700	5.5	4.0	0.37	9.87	2.72	11.05
YP-SQF35	35-42	10	6275x2940x2700	7.5	4.0	0.37	11.87	3.55	16.05
YP-SQF55	55-62	15	7425x3120x2900	7.5	4.0	0.37	11.87	4.33	23.08
YP-SQF70	70-78	20	7575x4620x2850	11	4.0	0.37	15.37	5.32	30.32
YP-SQF85	85-95	25	8325x5030x3000	11	4.0	0.37	15.37	6.17	37.42
YP-SQF105	105-115	33	9725x5030x3000	11	4.0	0.37	15.37	7.10	44.60
YP-SQF120	120-130	33	10505x5030x3000	11	4.0	0.37	15.37	7.60	49.27
YP-SQF135	135-145	33	11875x5030x3000	11	7.5	0.37	18.87	8.18	54.01
YP-SQF150	150-165	45	11875x5730x3000	15	7.5	0.37	22.87	8.84	60.92
YP-SQF170	170-190	50	13560x5730x3000	15	7.5	0.37	22.87	10.06	72.56
YP-SQF200	200-235	60	14475x6330x3000	18.5	7.5	0.37	26.37	11.47	86.47
YP-SQF240	240-265	70	14475x6730x3000	22	7.5	0.37	29.87	12.08	95.41

IEPP Environmental (Shandong) Group Co., Ltd.

Our company integrates production, R&D and environmental scientific research. We are an excellent supplier of environmental protection equipment industry in China. The headquarter of the group is located in Jinan, Shandong province, and our factory is located in Yucheng, Shandong province. Our company has a professional team with rich experience in environmental protection industry. Based on technological innovation, we provide customized services according to customer requirements.Our factory covers an area of about 15,000 square meters, with an investment of nearly 100 million yuan. The factory has modern production workshops, R&D centers,industrial laboratories which is equipped with advanced testing instruments. These ensure the sustainability of corporate development and the core competitive advantage of our products. Our company’s main products include: super atomization dissolved air flotation, sludge dehydrator, mud scraper, automatic dosing device, biological deodorization equipment , catalytic combustion device, etc. Among them, our self-developed super atomization dissolved air flotation has a remarkable effect in high-concentration wastewater treatment, and the SS removal rate can reach more than 85%, and this equipment has a number of national patents. Our company is currently relying on its own advantages in the competition, has reached a strategic partnership with many well-known brands, and the products have won unanimous praise from users.
