Name: IEPP China Manufacturer High Capacity Wastewater Treatment Powder Chemical Dosing Mixture Automatic Flocculant tank Equipment
Brand: Iepp Environmental (shandong) Group Co., Ltd.
Availability: InStock

Home Products Automatic Polymer Preparation System

IEPP China Manufacturer High Capacity Wastewater Treatment Powder Chemical Dosing Mixture Automatic Flocculant tank Equipment

Product Details:

Contact Now

Detailed Product Description

视频出厂验货:	可提供	机械测试报告:	可提供
核心组件:	齿轮箱, 泵, 齿轮, 轴承, 电机, PLC	原产地:	Shandong, China
品牌:	IEPP, IEPP	保修期:	5年以上
生产率:	3000升/小时	重量 (KG):	500 Kg
产品名称:	自动加药装置	材料:	不锈钢304
应用程序:	污水处理厂	类型:	自动
容量:	1000L/2000L/3000L/4000L	最小起订量:	1套
控制:	电气自动控制 (西门子PLC)	保修后服务:	视频技术支持 \ 在线支持 \ 备件
电压:	220v 380v 50HZ 60HZ (或定制	状态:	New
适用行业:	酒店, 裁缝店, 建材店, 生产车间, 维修店, 食品饮料加工厂, 农场, 饭店, 家用, 零售, 食品店, 文印店, 施工工地, 能源矿产, 餐饮店, 其他, 广告公司	展示厅地点（在海外哪些国家有样品间）:	埃及, 加拿大, 土耳其, 英国, 美国, 意大利, 法国, 德国, 越南, 菲律宾, 巴西, 秘鲁, 沙特阿拉伯, 印度尼西亚, 巴基斯坦, 印度, 墨西哥, 俄罗斯, 西班牙, 泰国, 摩洛哥, 肯尼亚, 阿根廷, 智利, 阿联酋, 哥伦比亚, 阿尔及利亚, 南非, 哈萨克斯坦, 乌克兰, 吉尔吉斯斯坦, 尼日利亚, 乌兹别克斯坦, 塔吉克斯坦, 日本, 马来西亚, 澳大利亚
营销类型:	常规产品	核心组件质保期:	1年
商品尺寸:	2.01.01.7	电机额定功率(KW):	2.43kw
封装材料:	胶合板案例	体重:	500kg

IEPP China manufacturer high capacity wastewater treatment powder chemical dosing mixture automatic flocculant tank equipment

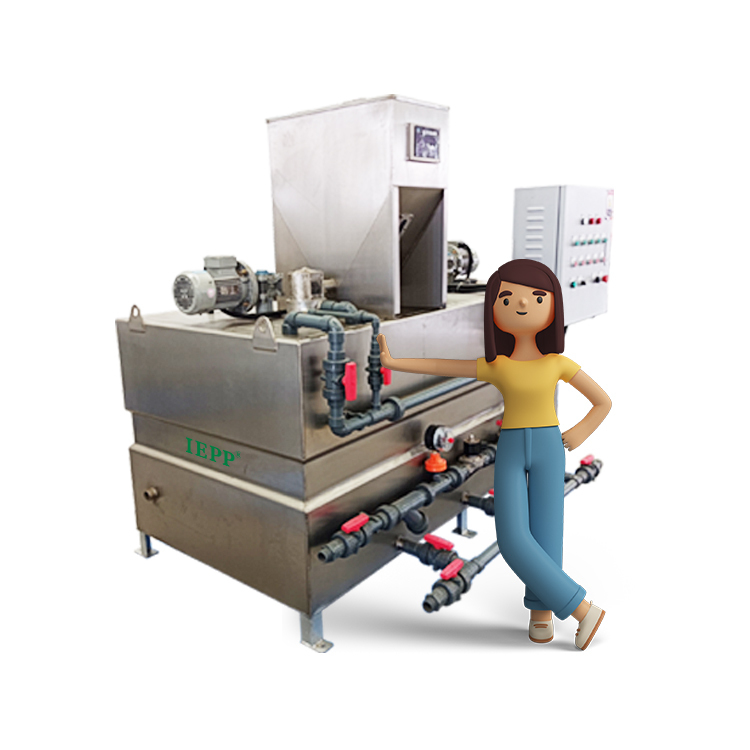

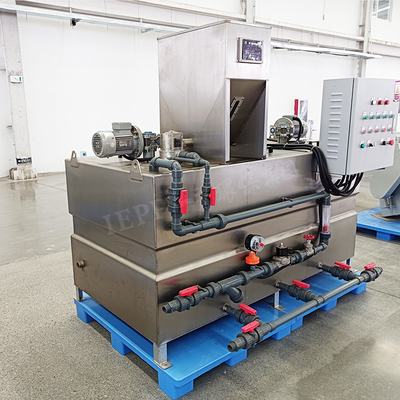

IEPP Automatic Polymer Preparation System

IEPP Automatic Polymer Preparation System is a comple terange of polymer batching and metering systems.The polymer preparation unit automatically prepares polymer solutions which are used as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenance through to the various stages of wastewater treatment, as well as oil recovery, colour removal, paper production and mineral processing.

Polymer dosing device

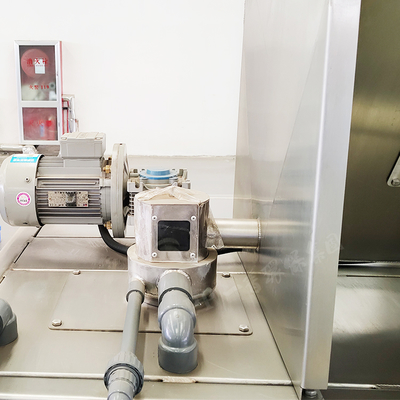

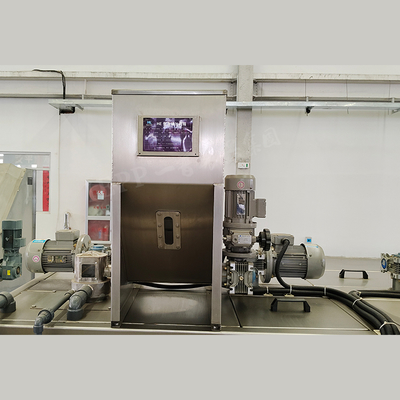

Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.

Water supply device

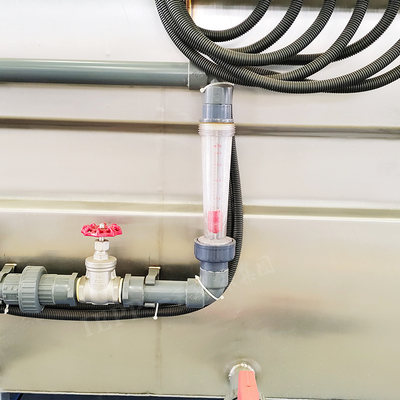

Water supply device Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.

Polymer dissolving device

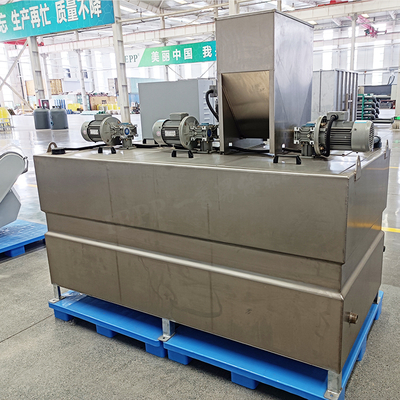

Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank

and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
