SS304 WWTP Industrial Spiral Machine Mud Cake Transfer Horizontal Shaftless Screw Sludge Conveyor Unit Pump Motor PLC-for Farms

Product Details:

Place of Origin:	Shandong, China
Brand Name:	IEPP
Model Number:	YP-LX260

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Pump, Gear, Bearing, Motor, PLC	Warranty:	More Than 5 Years
Productivity:	3000L/Hour	Weight (kg):	1500 Kg
Product Name:	Shaftless Spiral Conveyor	Other Name:	Shaftless Screw Conveyor
Brand:	IEPP	Material:	Stainless Steel 304/316, Plywood
MOQ:	1 Set	Voltage:	380V/50Hz
Package:	Plywood Package	Capacity:	3m3/h
Advantage:	Low Cost	Condition:	New
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Comp	Showroom Location:	Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Chile, Romania, South Africa, Malaysia, Australia
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Size:	2500330300	Power:	0.75
Weight:	1500kg

IEPP manufacturer factory ss304 WWTP industrial mud cake transfer spiral machine horizontal shaftless screw sludge conveyor unit

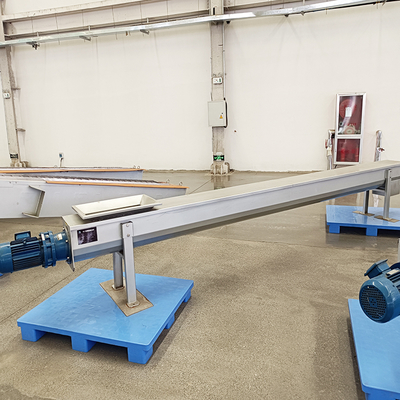

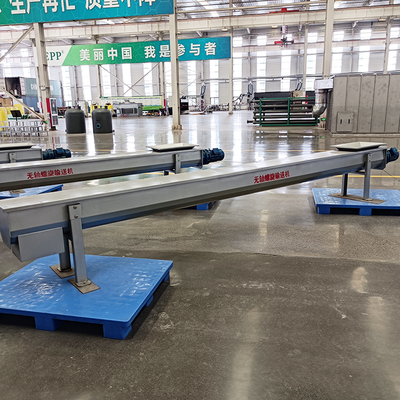

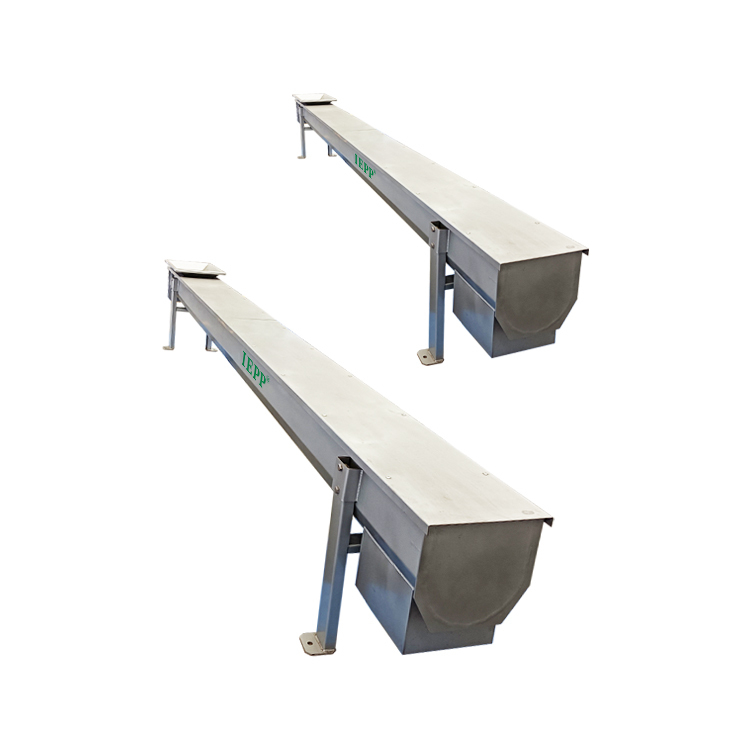

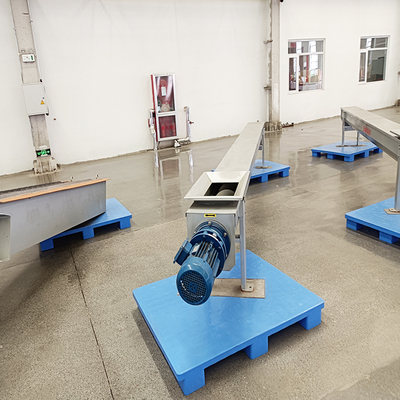

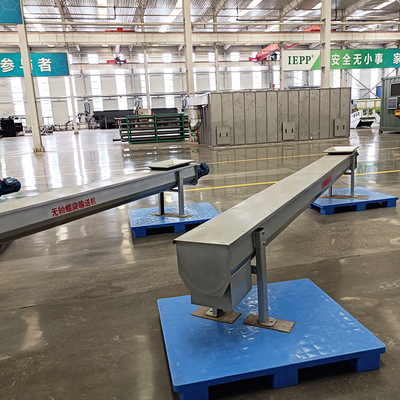

IEPP® horizontal and inclined shaftless spiral conveyor - with a simple construction - are an extremely reliable conveying option. The conveyor shell is made of 304 stainless steel, which is corrosion-resistant and durable.

The spiral is made out of special steel which has a very high tensile strength. IEPP® shaftless spiral conveyors are designed for the transport of otherwise difficult to handle materials, such as municipal dewatered sludge, wastewater screenings, grit, industrial sludges and other sticky, viscous, stringy materials.

一一一一一一一一一一一一一一一一一一一

Compared to traditional conveying methods, shaftless screws allow for higher fill rates and lower rotational speeds, resulting in less wear, less maintenance and less downtime. Eliminating the central axis improves fill rates, which means the solution is more cost-effective in terms of conveying.

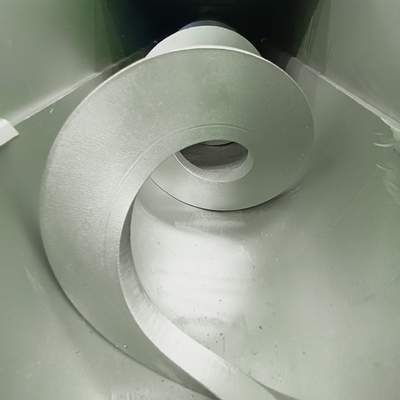

This product is mainly composed of drive device, head assembly, housing, shaftless spiral, slot liner, feed port, discharge port, cover, base, etc. Driving device: The driving device is composed of motor and reducer. Housing: The housing is u-shaped or o-shaped, with a rain-proof cover on the top. The material is 304 stainless steel. Shaftless spiral: The material is carbon steel. The diameter of sprial can be customized according to customer needs. Slot lining board: It is made of hard-wearing nylon. Inlet and outlet: there are two types of inlet and outlet: square and round. The general inlet and outlet form is determined by the user.

YP-LX260	215	2	2.5m0.33m0.3m	1.5	SS304	3	\
YP-LX260	215	2.5	3.0m0.33m0.3m	1.5	SS304	3	\
YP-LX260	215	3.0	3.5m0.33m0.3m	1.5	SS304	3	\
YP-LX260	215	4.0	4.5m0.33m0.3m	2.2	SS304	3	2.1
YP-LX260	215	4.5	5.0m0.33m0.3m	2.2	SS304	3	1.9
YP-LX260	215	5.0	5.5m0.33m0.3m	2.2	SS304	3	1.7
YP-LX260	215	6.0	6.0m0.33m0.3m	4.0	SS304	3	1.5
