Name: IEPP Grey Water Pulp Paper Fiber Recycling Wastewater Treatment Eliminating Debris Rotary Drum Screen Filter for Pumped Flow
Brand: Iepp Environmental (shandong) Group Co., Ltd.
Availability: InStock

Home Products Rotary Drum Screen

IEPP Grey Water Pulp Paper Fiber Recycling Wastewater Treatment Eliminating Debris Rotary Drum Screen Filter for Pumped Flow

Product Details:

Contact Now

Detailed Product Description

视频出厂验货:	可提供	机械测试报告:	可提供
核心组件:	齿轮箱, 压力容器, 泵, 齿轮, 轴承, 发动机, 电机, PLC	原产地:	Shandong, China
品牌:	IEPP, IEPP	保修期:	5年以上
生产率:	200000L/小时	重量 (KG):	1250 Kg
产品名称:	转鼓筛	其他名称:	旋转滚筒筛解决方案系统
电压:	380V/50Hz	原材料:	SS 304
控制:	按钮/PLC	钢筋间距:	0.25mm ~ 3mm
填料:	适航套餐	应用程序:	水净化
最小起订量:	1套	状态:	New
适用行业:	酒店, 裁缝店, 建材店, 生产车间, 维修店, 食品饮料加工厂, 农场, 饭店, 家用, 零售, 食品店, 文印店, 施工工地, 能源矿产, 餐饮店, 其他, 广告公司	展示厅地点（在海外哪些国家有样品间）:	埃及, 加拿大, 土耳其, 英国, 美国, 意大利, 法国, 德国, 越南, 菲律宾, 巴西, 秘鲁, 沙特阿拉伯, 印度尼西亚, 巴基斯坦, 印度, 墨西哥, 俄罗斯, 西班牙, 摩洛哥, 肯尼亚, 阿根廷, 韩国, 阿联酋, 哥伦比亚, 阿尔及利亚, 斯里兰卡, 孟加拉国, 南非, 乌克兰, 吉尔吉斯斯坦, 乌兹别克斯坦, 塔吉克斯坦, 日本, 马来西亚, 澳大利亚
营销类型:	常规产品	核心组件质保期:	1年
商品尺寸:	取决于容量	封装材料:	带薄膜的木制包装
电机额定功率(KW):	0.75	体重:	取决于容量

IEPP grey water pulp paper fiber recycling wastewater treatment eliminating debris rotary drum screen filter for pumped flow

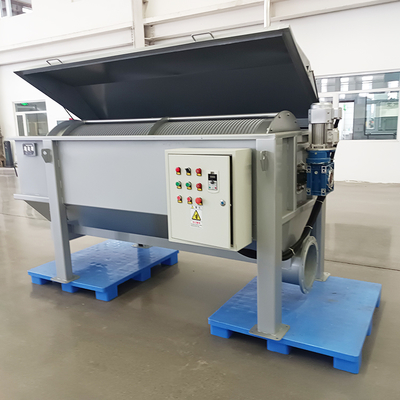

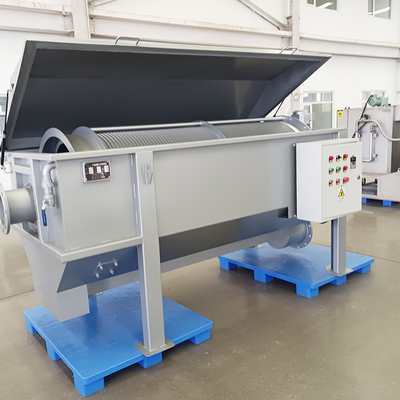

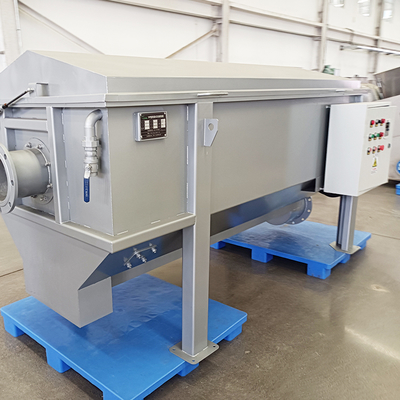

The IEPP® Rotary Drum Screen is an automatic, self-cleaning fine screen useful for applications from primary to membrane screening in municipal and industrial sewage treatment applications, designed specifically to protect secondary and tertiary wastewater treatment systems. The fine opening perforated media of the IEPP unit can effectively remove these materials in normal operation.

The Rotary Drum Screen consists of: Drum of perforated media External spray system Flow distribution pipe Support structure with trunnion wheels Removable enclosures Drum drive system composed of a gear motor and that eliminates chain maintenance. Support structure and all wetted parts available in 304 or 316 stainless steel.

IEPP® Rotary Drum Screen Operation Flow is pumped to the distribution pipe where it is directed onto the rotating drum. Wastewater passes through the openings in the drum while the captured screenings remain on the drum surface. Non-continuous flights inside the drum transport the screenings towards the discharge end of the drum. The screenings exit the unit and fall into a post screening device or a container. Spray water cycling is adjustable to ensure maximum performance.

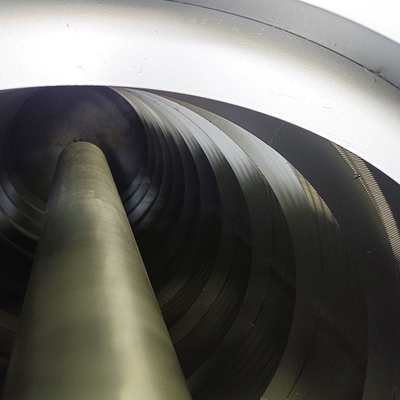

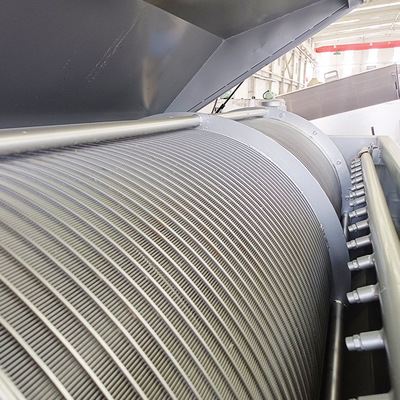

1.COVER A cover is provided for visual control of the process and ease of maintenance 2.THE WASHING SYSTEM Cleaning the cylinder filter cloth is carried out by the rinsing nozzies that are supplied with water under pressure and placed on the outer surface of the cylinder in the upper area of the screen 3.WASTEWATER INLET Untreated wastewater from the receiving manifold goes to the distribution device and then directly to the cylinder filtering surface 4.WASTE UNLOADING An additional compacting press can be installed in the discharge area with a system for packing the waste into bags to prevent the spread of odours and reduce the volume of transported waste 5.GEAR MOTOR The cylinder is driven by a gear motor for unloading waste from the screen and cleaning of the fitering surface 6.THE FILTERING CYLINDER Cylinder filter cloth can be made of a triangular profile, perforated cloth or metal mesh depending on the type of wastewater and the required gap 7.DISCHARGE OF TREATED WASTEWATER Treated wastewater is discharged by gravity from the baottom part of the screen

IEPP-ZG-100	0.25~3	100	2270x1100x1275	0.75	DN150	DN250	0.75	0.59
IEPP-ZG-150	0.25~3	150	2970x1300x1445	0.75	DN200	DN300	0.75	0.9
IEPP-ZG-200	0.25~3	200	3570x1300x1445	0.75	DN250	DN350	0.75	1.25
