Automatic Rotary Multi-Rake Bar Screen Farms Manufacturing Plants Hotels Retail Plywood Material Motor Engine PLC Gearbox Core

Product Details:

Place of Origin:	Shandong, China
Brand Name:	IEPP

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Pressure Vessel, Gear, Bearing, Engine, Motor, PLC	Warranty:	More Than 5 Years
Productivity:	10000L/Hour	Weight (kg):	1200 Kg
Product Name:	Multi-rake Bar Screen	Other Name:	Rotary Mechanical Rake Grid
Brand:	IEPP	Material:	SS304, Plywood
Application:	Filtration	Voltage:	380V/50Hz
Advantage:	24 Hours Automatic Running	Shape:	Rectangular
Processing:	Pretreatment	Package:	Seaworthy Packaging
Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Comp
Showroom Location:	Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Chile, South Africa, Japan, Malaysia, Australia	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Size:	314.96inches31.5inches43.31inches
Power:	0.75kw	Weight:	1500kg

IEPP manufacturer industrial wastewate treatment plant headworks automatic mechinal rotary multi rake bar screen trash separator

IEPP®Multi-Rake Bar Screen is an efficient, proven screen technology, for removal of inorganic solids that can be harmful to downstream equipment in municipal and industrial applications. The heavy duty design provides durability and long life in the most severe conditions. High removal efficiency and low headloss is achieved with multiple rakes cleaning the screen and rake teeth penetrating the bar openings to positively remove captured material.

The benefit of continuous cleaning with multiple rakes is rapid debris removal for applications with a high screenings load at treatment plant headworks, pump stations, or combined sewer systems.

Advantages ：All stainless steel construction to resist corrosion.

Durable stainless steel roller chain.

Replaceable rake teeth. Weather protection system.

Maintenance free lower chain guide or optional lower sprocket assembly.

Optional removable covers for odor control.

Optional explosion-proof design

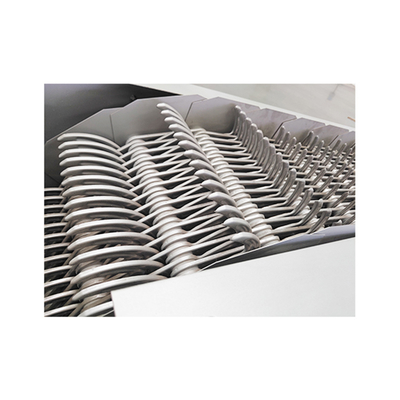

A set of closed rake teeth chains are formed by staggering and paralleling many identical rake teeth parts. Driven by the motor and reducer, the continuous top-down circular motion is carried out through a set of sheaves and chains to achieve the purpose of continuous fishing the solid dirt in water. When the rake teeth chain runs to the upper part and the back of the equipment, due to the guiding effect of the sprocket and the curved rail, the parallel rake teeth row can be dislocated, so that the solid dirt falls into the slag groove by its own weight.

YP-GY500	3	600	1.5-5	0.75	SS304
YP-GY600	3	700	1.5-5	0.75	SS304
YP-GY700	3	800	1.5-5	0.75	SS304
YP-GY800	3	900	1.5-5	1.1	SS304
YP-GY900	3	1000	1.5-5	1.1	SS304
YP-GY1000	3	1100	1.5-5	1.5	SS304
YP-GY1100	3	1200	1.5-5	1.5	SS304
