IEPP Manufacturer Ss316 10 Micron Mesh WWTP STP Wastewater Treatment Fiber Filter Recycling Water Automatic Rotary Drum Screen

Product Details:

Place of Origin:	Shandong, China
Brand Name:	IEPP

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Gearbox, Pressure Vessel, Pump, Gear, Bearing, Motor, PLC	Warranty:	More Than 5 Years
Productivity:	200000L/Hour	Weight (kg):	1250 Kg
Product Name:	Rotary Drum Screen	Other Name:	Intake Screen Solution System
Brand:	IEPP	Voltage:	380V/50Hz
Packing:	Seaworthy Package	Raw Material:	SS 304
Application:	Water Purification	Control:	Button/PLC
MOQ:	1 Set	Function:	Water Treatment Systerm
Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Comp
Showroom Location:	Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, UAE, South Africa, Japan, Malaysia, Australia	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Material:	Wooden Package With Film
Weight:	Depends On Capacity	Size:	Depends On Capacity
Power:	0.75

IEPP manufacturer ss316 10~40 micron mesh WWTP STP wastewater treatment fiber filter recycling water automatic rotary drum screen

The IEPP® Rotary Drum Screen is an automatic, self-cleaning fine screen useful for applications from primary to membrane screening in municipal and industrial sewage treatment applications, designed specifically to protect secondary and tertiary wastewater treatment systems. The fine opening perforated media of the IEPP unit can effectively remove these materials in normal operation.

The Rotary Drum Screen consists of: Drum of perforated media External spray system Flow distribution pipe Support structure with trunnion wheels Removable enclosures Drum drive system composed of a gear motor and that eliminates chain maintenance. Support structure and all wetted parts available in 304 or 316 stainless steel.

IEPP® Rotary Drum Screen Operation Flow is pumped to the distribution pipe where it is directed onto the rotating drum. Wastewater passes through the openings in the drum while the captured screenings remain on the drum surface. Non-continuous flights inside the drum transport the screenings towards the discharge end of the drum. The screenings exit the unit and fall into a post screening device or a container. Spray water cycling is adjustable to ensure maximum performance.

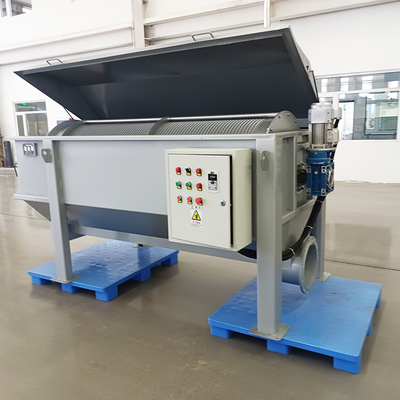

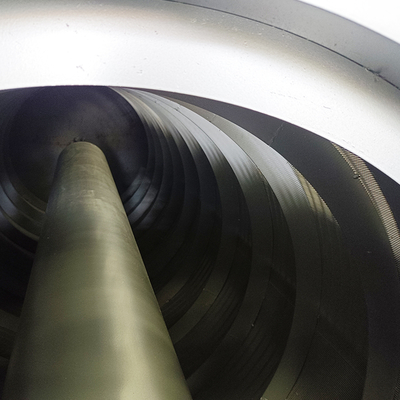

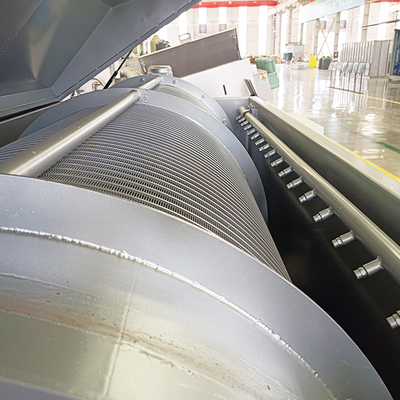

1.COVER A cover is provided for visual control of the process and ease of maintenance 2.THE WASHING SYSTEM Cleaning the cylinder filter cloth is carried out by the rinsing nozzies that are supplied with water under pressure and placed on the outer surface of the cylinder in the upper area of the screen 3.WASTEWATER INLET Untreated wastewater from the receiving manifold goes to the distribution device and then directly to the cylinder filtering surface 4.WASTE UNLOADING An additional compacting press can be installed in the discharge area with a system for packing the waste into bags to prevent the spread of odours and reduce the volume of transported waste 5.GEAR MOTOR The cylinder is driven by a gear motor for unloading waste from the screen and cleaning of the fitering surface 6.THE FILTERING CYLINDER Cylinder filter cloth can be made of a triangular profile, perforated cloth or metal mesh depending on the type of wastewater and the required gap 7.DISCHARGE OF TREATED WASTEWATER Treated wastewater is discharged by gravity from the baottom part of the screen

IEPP-ZG-100	1	100	2270x1100x1275	0.75	DN150	DN250	0.75	0.59
IEPP-ZG-150	1	150	2970x1300x1445	0.75	DN200	DN300	0.75	0.9
IEPP-ZG-200	1	200	3570x1300x1445	0.75	DN250	DN350	0.75	1.25
