Name: IEPP China Factory Wastewater Treatment Plant Chemical Dosing Device Pe Storage tank Manual Polymer Preparation System Equipment
Brand: Iepp Environmental (shandong) Group Co., Ltd.
Availability: InStock

Home Products PE Chemical Dosing Tank

IEPP China Factory Wastewater Treatment Plant Chemical Dosing Device Pe Storage tank Manual Polymer Preparation System Equipment

Product Details:

Place of Origin:	Shandong, China
Brand Name:	IEPP

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Available
Core Components:	Gearbox, Pump, Gear, Bearing, Motor, PLC	Warranty:	1 Year
Productivity:	1000L/Hour	Weight (kg):	100 Kg
Product Name:	Ploymer Preparation Tank	Brand:	IEPP
Application:	Wastewater Treatment Plant	Type:	Automatic
After-sales Service Provided:	Video Technical Support	Capacity:	1000L/2000L/3000L/4000L
Color:	Customized Color	Voltage:	220v 380V 50HZ 60HZ(Or Customized)
MOQ:	1 Set	Packing:	Standard Shipping Packing
Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Size:	300012001800
Material:	Polywood	Power:	0.75kw
Weight:	100kg

IEPP China factory wastewater treatment plant chemical dosing device pe storage tank manual polymer preparation system equipment

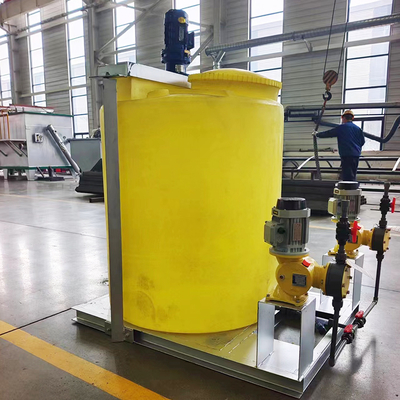

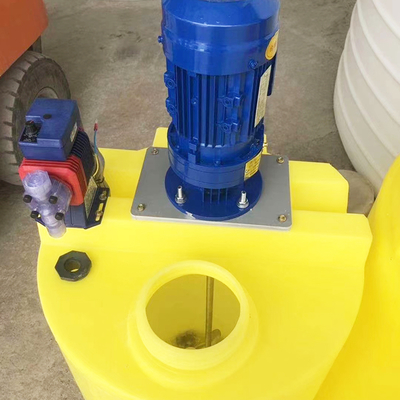

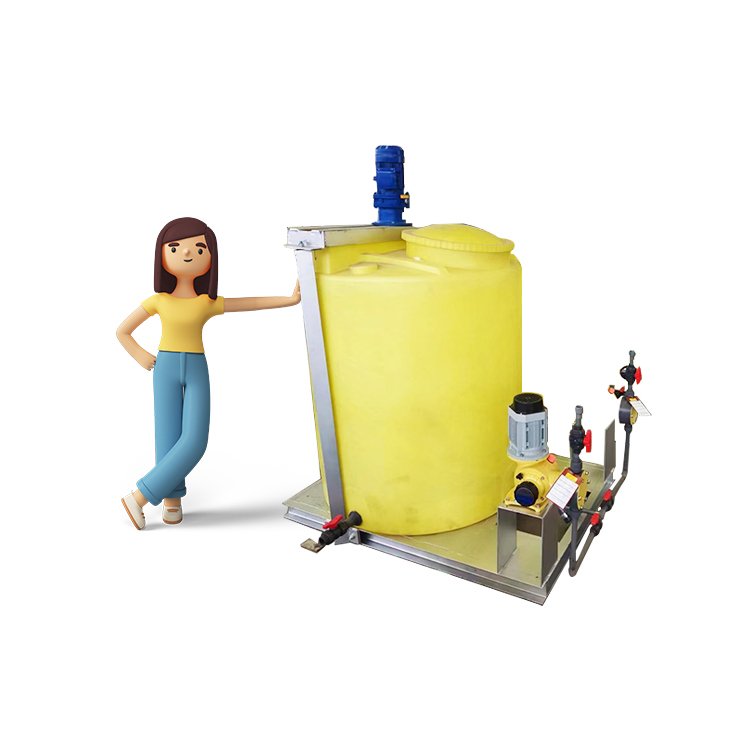

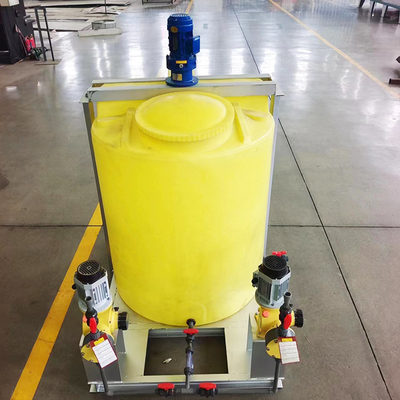

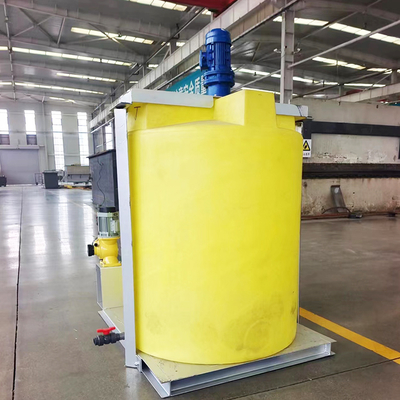

IEPP® PE Tank Chemical Dosing unit is a simple and reliable dosing equipment. The machine is composed by stirring motor, mixer, dosing port, water inlet, etc if the client has special requirements. This equipment has limited volume and low cost and has a wide range of use.

Application Scope:

water treatment and purification equipment; storage and transportation of cooling water, chemical preparations, chemical products, raw materials, various oil products and beverages for industrial use.

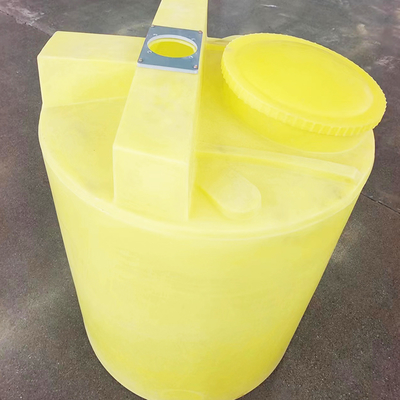

The plastic tanks of IEPP® PE Tank Chemical Dosing unit are dimensioned both according to chemical resistance and the static load. We guarantee a durable solution throughout the life of the tank, which is calculated for 25 by default year. In contrast to PE tanks, e.g. fiberglass tanks have a sacrificial layer in e.g. PP that is in contact with the liquid. When if this breaks down, there is a risk of breakdown stability of the tank, as the chemistry thus gains access to the structure-bearing layer. Our PE tanks have the same layers throughout the construction, giving one more accurate lifetime calculation.

IEPP has developed a collaboration with suppliers who mainly work in PE for tank systems. However, they can also work in PP, PVC, PVDF, PVDF-HP and E-CTFE. Larger tanks are reinforced with either fiberglass or steel, but the liner is retained in PE to always secure the chemical resistance.

Your benefits

Environmentally-friendly storage of liquid chemicals Robust and durable: stable design in UV-stabilised PE (polyethene) Simple to install: sintered threaded sockets for fixing metering pumps and stirrers on storage tanks Safe storage: A screw cover closes safely

Available Options:

380/220V/50 or 60Hz Epoxy coated stainless steel mixer pH controller ORP controller Stand-by pump Skid mounted unit Custom built unit Pump maintenance spare kit Level switch Local control panel

Preparation tank capacity	L	500	1000	1500	2000	3000
Pump flow	L/H	180	240	320	420	500
Dilution water pressure	Bar	5	5	5	5	5
Long	MM	1350	1500	1950	2080	2120
Wide	MM	950	1200	1550	1660	1800
High	MM	1500	1800	2200	2400	2500
Connection size of discharge pipe	DN	Φ20	Φ20	Φ20	Φ20	Φ20
Power	KW	0.55	1.12	1.12	1.47	4.5

1.Q: Are you a factory or trading company? A: We are a factory. we have rich experience for manufacturing sewage treatment equipment for more than 15 years. 2.Q: Do you have minimum order quantity reguest? A: No minimum order, but it can get a discount if you order a large quantity. 3.Q: Can you meet my special requirements for my products? A: Yes, we have a professional design team. We can provide drawings according to your requirements. 4. Q: How to buy your products? A: You can provide us your water sources, water quality, flow rate and ground area (contact us for more details) 5. Q: How to pay? A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading. 6. Q: What is the delivery time? A: It depends on order quantities. Generally speaking the delivery time will be within 4 to 6 weeks.
