Name: IEPPfactory Directly Sale Paint Food Beverage Slaughtering House Tannery Wastewater Treatment Plant Chemical Dose tank Equipment
Brand: Iepp Environmental (shandong) Group Co., Ltd.
Availability: InStock

Home Products PE Chemical Dosing Tank

IEPPfactory Directly Sale Paint Food Beverage Slaughtering House Tannery Wastewater Treatment Plant Chemical Dose tank Equipment

Product Details:

Contact Now

Detailed Product Description

视频出厂验货:	可提供	机械测试报告:	可用
核心组件:	齿轮箱, 泵, 齿轮, 轴承, 电机, PLC	原产地:	Shandong, China
品牌:	IEPP, IEPP	保修期:	1年
生产率:	1000升/小时	重量 (KG):	100 Kg
产品名称:	聚合物制备罐	应用程序:	污水处理厂
类型:	自动	提供售后服务:	视频技术支持
容量:	1000L/2000L/3000L/4000L	颜色:	定制颜色
电压:	220v 380v 50HZ 60HZ (或定制)	最小起订量:	1套
填料:	标准装运包装	状态:	New
适用行业:	酒店, 裁缝店, 建材店, 生产车间, 维修店, 食品饮料加工厂, 农场, 饭店, 零售, 食品店, 文印店, 施工工地, 能源矿产, 餐饮店, 广告公司	展示厅地点（在海外哪些国家有样品间）:	埃及, 加拿大, 土耳其, 英国, 美国, 意大利, 法国, 德国, 越南, 菲律宾, 巴西, 秘鲁, 沙特阿拉伯, 印度尼西亚, 巴基斯坦, 印度, 墨西哥, 俄罗斯, 西班牙, 泰国, 摩洛哥, 肯尼亚, 阿根廷, 韩国, 智利, 阿联酋, 哥伦比亚, 阿尔及利亚, 南非, 哈萨克斯坦, 乌克兰, 吉尔吉斯斯坦, 乌兹别克斯坦, 塔吉克斯坦, 日本, 马来西亚, 澳大利亚
核心组件质保期:	1年	商品尺寸:	300012001800
营销类型:	热销产品2023	封装材料:	聚木
电机额定功率(KW):	0.75kw	体重:	100kg

IEPP factory directly sale paint food beverage slaughtering house tannery wastewater treatment plant chemical dose tank equipment

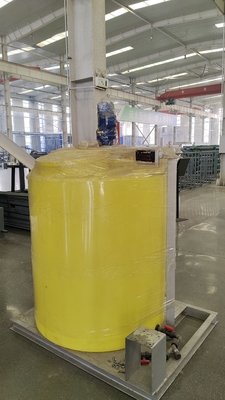

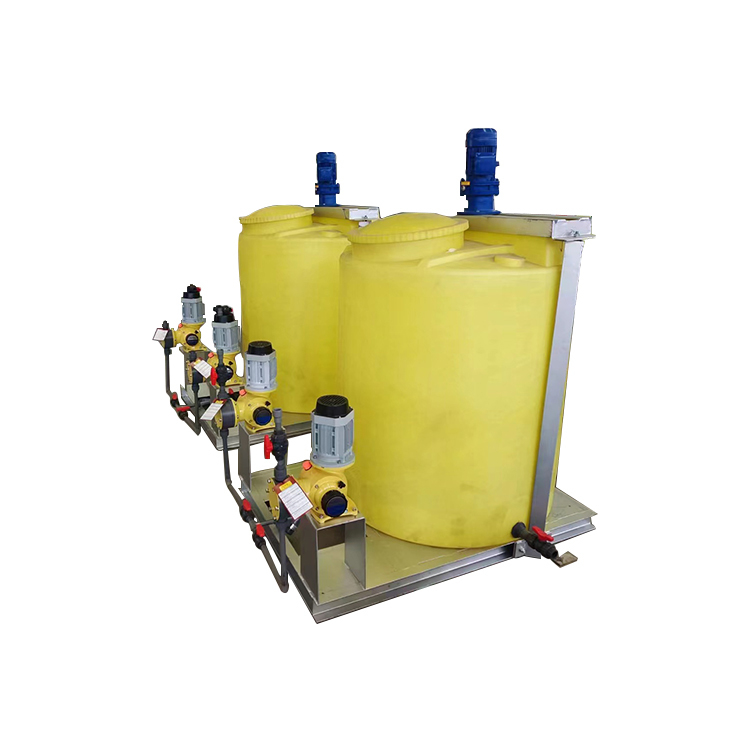

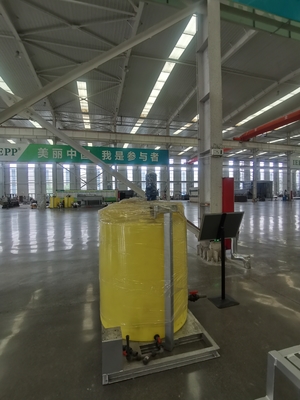

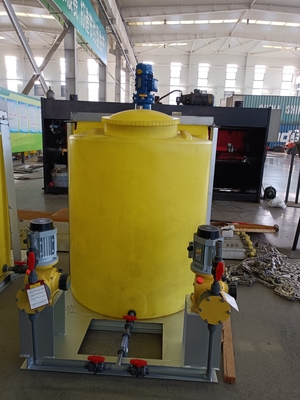

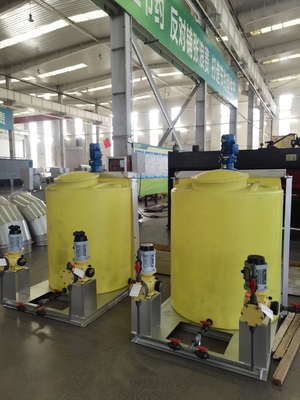

IEPP® PE Tank Chemical Dosing unit is a simple and reliable dosing equipment. The machine is composed by stirring motor, mixer, dosing port, water inlet, etc if the client has special requirements. This equipment has limited volume and low cost and has a wide range of use.

Application Scope:

water treatment and purification equipment; storage and transportation of cooling water, chemical preparations, chemical products, raw materials, various oil products and beverages for industrial use.

The plastic tanks of IEPP® PE Tank Chemical Dosing unit are dimensioned both according to chemical resistance and the static load. We guarantee a durable solution throughout the life of the tank, which is calculated for 25 by default year. In contrast to PE tanks, e.g. fiberglass tanks have a sacrificial layer in e.g. PP that is in contact with the liquid. When if this breaks down, there is a risk of breakdown stability of the tank, as the chemistry thus gains access to the structure-bearing layer. Our PE tanks have the same layers throughout the construction, giving one more accurate lifetime calculation.

IEPP has developed a collaboration with suppliers who mainly work in PE for tank systems. However, they can also work in PP, PVC, PVDF, PVDF-HP and E-CTFE. Larger tanks are reinforced with either fiberglass or steel, but the liner is retained in PE to always secure the chemical resistance.

Your benefits

Environmentally-friendly storage of liquid chemicals Robust and durable: stable design in UV-stabilised PE (polyethene) Simple to install: sintered threaded sockets for fixing metering pumps and stirrers on storage tanks Safe storage: A screw cover closes safely

Available Options:

380V/230V/50 or 60Hz Epoxy coated stainless steel mixer pH controller ORP controller Stand-by pump Skid mounted unit Custom built unit Pump maintenance spare kit Level switch Local control panel

Preparation tank capacity	L	500	1000	1500	2000	3000
Pump flow	L/H	180	240	320	420	500
Dilution water pressure	Bar	5	5	5	5	5
Long	MM	1350	1500	1950	2080	2120
Wide	MM	950	1200	1550	1660	1800
High	MM	1500	1800	2200	2400	2500
Connection size of discharge pipe	DN	Φ20	Φ20	Φ20	Φ20	Φ20
Power	KW	0.55	1.12	1.12	1.47	4.5

1.Q: Are you a factory or trading company? A: We are a factory. we have rich experience for manufacturing sewage treatment equipment for more than 15 years. 2.Q: Do you have minimum order quantity reguest? A: No minimum order, but it can get a discount if you order a large quantity. 3.Q: Can you meet my special requirements for my products? A: Yes, we have a professional design team. We can provide drawings according to your requirements. 4. Q: How to buy your products? A: You can provide us your water sources, water quality, flow rate and ground area (contact us for more details) 5. Q: How to pay? A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading. 6. Q: What is the delivery time? A: It depends on order quantities. Generally speaking the delivery time will be within 4 to 6 weeks.
